Creation and Generation

Now that we are set up to use the RASP-Platform, let's dive right in and generate code for our first application.

---

Creation of JSON blueprint

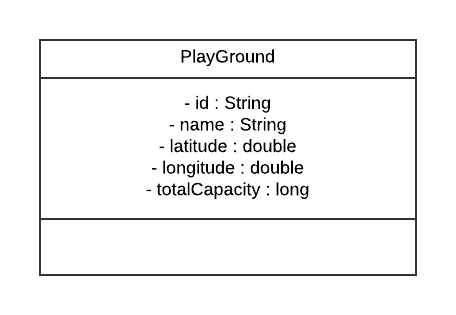

Let us create an application which handles CRUD operations for a single class - say playground. During our design phase, we arrive at the following UML Class diagram :

This Diagram can be directly translated to a JSON specification as follows :

{
	"playground": {
		"cluster": "DB_PROFILE",
		"ui": false,
		"api": true,
		"display_name": "PlayGround",
		"fields": {
			"id": {
				"index": true,
				"name": "id",
				"length": 100,
				"required": true,
				"type": "String"
			},
			"name": {
				"index": true,
				"name": "name",
				"length": 128,
				"required" : true,
				"type": "String"
			},
			"latitude": {
				"name": "latitude",
				"type": "double"
			},
			"longitude": {
				"name": "longitude",
				"type": "double"
			},
			"total_capacity": {
				"name": "total_capacity",
				"type": "long"
			}
		}
	}
}

We can briefly go over the semantics of the parameters in the JSON file :

1. playground : This is the name of the class and it must coincide with the name of the file (playground.json).
2. cluster : We won't delve into it for the time being but this field specifies the MongoDB cluster name.
3. ui : For now, we will be limiting ourselves to the generation of API end-points, but the rasp-platform is also capable of generating JSON specs to be fed to a front-end engine.
4. fields : Here, we specify the attributes of the created class :
   • name : The name of the attribute
   • type : The data-type to be used - possible values include String, double, long etc.
   • index : Specifies whether the values should be unique
   • required : Specifies whether the field can be null during creation.

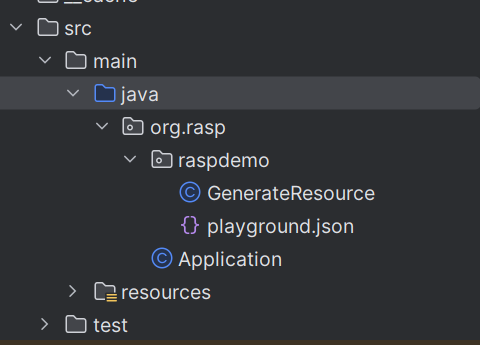

We add the JSON blueprint to the following location within our application : src/main/java/{groupId}/{artifactId}/playground.json

---

Creating the necessary directories

The following directories need to be created for code generation to work :

1. controller and service : Create directories named controller and service in src/main/java
2. static.ui.json : Create a directory with the file path src/main/resources/static/ui/json to store UI elements created by the Generator.

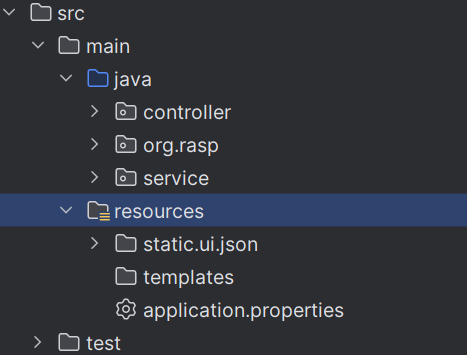

The following image illustrates the creation of the above directories :

---

Adding the Generator class

We will add the following code in a Java file created at src/main/java/{groupId}/{artifactId}/GenerateResource.java :

package org.rasp.raspdemo;
import platform.defined.ResourceGenerator;
import platform.util.Util;

public class GenerateResource {
	public static void main(String []args) throws Exception {
		String web_app_director = "./src/main/resources/static/ui/json";
		String controller_dir = "./src/main/java/controller";
		String controller_package = "controller";
		if (args.length > 0) {
			web_app_director = args[0];
		}
		if (args.length > 1) {
			controller_dir = args[1];
		}
		if (args.length > 2) {
			controller_package = args[2];
		}
		ResourceGenerator generator = new ResourceGenerator("org.rasp.raspdemo","./src/main/java/org/rasp/raspdemo/");
		if (!Util.isEmpty(web_app_director)) {
			generator.setWeb_app_directory(web_app_director);
		}
		if (!Util.isEmpty(controller_dir)) {
			generator.setController_directory(controller_dir);
			generator.setController_directory_package(controller_package);
		}
		generator.generateCode("./src/main/java/org/rasp/raspdemo/", null);
	}
}

As you can see, certain paths need to be correctly specified for the Generator to work.

String web_app_director = "./src/main/resources/static/ui/json";
String controller_dir = "./src/main/java/controller";
String controller_package = "controller";

The above file paths can remain the same since the controller and UI directories were just created.

ResourceGenerator generator = new ResourceGenerator("org.rasp.raspdemo","./src/main/java/org/rasp/raspdemo/");

Here, supply the correct groupId.artifactId and the path to the parent directory of the GenerateResource.java file.

generator.generateCode("./src/main/java/org/rasp/raspdemo/", null);

Here too, supply the path to the parent directory of the GenerateResource.java file.

---

Running GenerateResource.java

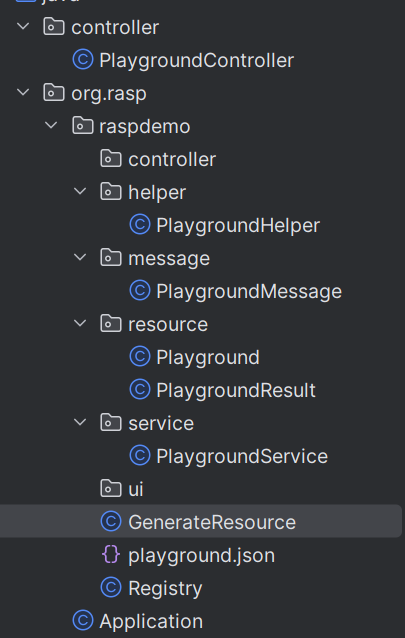

At this point, everything is in place for the code generation step to work. Run the GenerateResource.java file to generate the files shown the image below :

You will notice that Controllers, Services, Helpers, Resources and Messages are generated specific to the class described in the blueprint.
